 Home  »  Products  »  Wiring Devices  »  FLEXì

BRITISH STANDARD

FRAMES

14601/UK

2 modules

14604/UK

4 modules

14605

5 modules

DEVICES

1 way 2 pole switch

Art.14009 – Art.14009/TEC – Art.14009/WH
16A 250V AC – P=32,0 mm
Box = 20 pz – Package = 240 pz

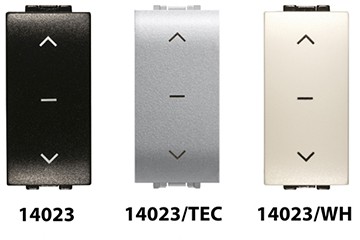

Twin 1 pole switch interlocked (1P/NO)+(1P/NO)

Art.14023 – Art.14023/TEC – Art.14023/WH
16A 250V AC – P=32,0 mm
Box = 10 pz – Package = 240 pz

1 way 2 poles switch

Art.14010 – Art.14010/WH – 20A 250V AC
Art.14011 – Art.14011/WH – 25A 250V AC
Art.14017 – Art.14017/WH – 32A 250V AC
P=26,0 mm
Box = 20 pz – Package = 240 pz

Fuse holder

Art.14066 – Art.14066/WH
16A 250V AC – P=25,0 mm
Box = 10 pz – Package = 200 pz

English shuttered 2P+E socket – 2M

Art.14041 – Art.14041/TEC – Art.14041/WH
13A 250V AC – P=25,0 mm
Box = 10 pz – Package = 120 pz

SELF SUPPORTING SOCKETS

Switched shuttered socket 2P+E – monoblock

Art.14141
13A 250V AC – P=25,0 mm
Box = 1 pz – Package = 10 Pz

Double switched shuttered socket 2P+E – monoblock

Art.14241
13A 250V AC – P=25,0 mm
Box = 1 pz – Package = 10 pz

TRIPLE SWITCHING DEVICES

Three independent 1 way 1 pole switches

Art.14301
16A 250V AC – P=32,0 mm
Box = 10 pz – Package = 120 Pz

Three independent 2 way 1 pole switches

Art.14302
16A 250V AC – P=32,0 mm
Box = 10 pz – Package = 120 pz

Three independent 1 way 1 pole push buttons

Art.14321
16A 250V AC – P=32,0 mm
Box = 10 pz – Package = 120 Pz

Three independent 1 way 1 pole switches – lightable

Art.14312
16A 250V AC – P=32,0 mm
Box = 10 pz – Package = 120 pz

Three independent 2 way 1 pole switches – lightable

Art.14313
16A 250V AC – P=32,0 mm
Box = 10 pz – Package = 120 Pz

Three independent 1 way 1 pole push buttons – lightable

Art.14318
16A 250V AC – P=32,0 mm
Box = 10 pz – Package = 120 pz

ELITE COVER PLATES

The Elite cover plates are supplied with the rings shown in the photos
The complete P/N is composed by the article number and the color code. Example: 5707/N

ANELLI ADATTATORI

P/N example:
5700/3 black ring 3M
5700/5CR chrome ring 5M

COLORS

WH – White

N – Black

AW -All White

AB – All Black

GL – Glittering Black

LNS – Dark Wood

LRW – Wengè

LBB- Natural Bamboo

ALS – Aluminum

ACS – Brushed Steel

RR – Ruby Red

AR – Orange

SA – Sand

ME – Mint

AZ – Light Blue

BL – Blue

TA – Tobacco
